QCaptionButton Class Reference

Button with Caption. More...

#include <QCaptionButton.h>

Inheritance diagram for QCaptionButton:

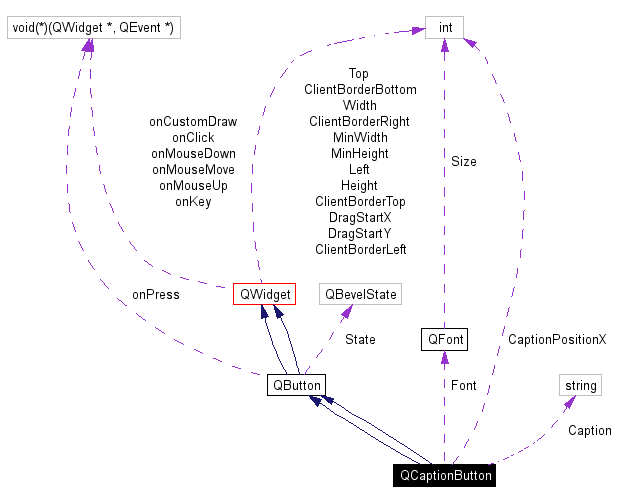

[legend]Collaboration diagram for QCaptionButton:


Public Methods
virtual void	updateCaptionPosition ()
	overwrite this to recalculate caption position
virtual void	draw (QEvent *e)
	draws itself with OpenGL. Here is the OpenGL drawing code
virtual void	layout ()
	layout the children widgets. This method is called every time the size is changed. Have to be overwritten for respond on size changes
virtual bool	canDrag (QEvent *e)
	have to return true if widget should be dragged with mouse. This method is overwritten in sub classes. If returns true, widget will be dragged
virtual bool	processEvent (QEvent *e)
	processing mouse/keyboard events which are in widgets region. Mouse coordinates are relative to Owner
virtual bool	processMouseOwner (QEvent *e)
	processing mouse events which are in Owner widget region. Mouse coordinates are relative to Owner
virtual void	childrenChanged ()
	called if a child is added/removed
virtual bool	canFocus (QEvent *e)
	defines whether control can have keyboard focus. Should return true if Widget wants to get keyboard focus
virtual void	Init ()
	initialization code
virtual void	CleanUp ()
	clean up code
virtual string	getCaption ()
	getter method for Caption
virtual void	setCaption (string newValue)
	setter method for Caption
QFont *	getFont ()
	getter method for Font
void	print ()
	prints itself to the cout
	QCaptionButton (QWidget *aOwner)
	Constructor.
virtual	~QCaptionButton ()
	Destructor.
virtual void	updateCaptionPosition ()
	overwrite this to recalculate caption position
virtual void	draw (QEvent *e)
	draws itself with OpenGL. Here is the OpenGL drawing code
virtual void	layout ()
	layout the children widgets. This method is called every time the size is changed. Have to be overwritten for respond on size changes
virtual bool	canDrag (QEvent *e)
	have to return true if widget should be dragged with mouse. This method is overwritten in sub classes. If returns true, widget will be dragged
virtual bool	processEvent (QEvent *e)
	processing mouse/keyboard events which are in widgets region. Mouse coordinates are relative to Owner
virtual bool	processMouseOwner (QEvent *e)
	processing mouse events which are in Owner widget region. Mouse coordinates are relative to Owner
virtual void	childrenChanged ()
	called if a child is added/removed
virtual bool	canFocus (QEvent *e)
	defines whether control can have keyboard focus. Should return true if Widget wants to get keyboard focus
virtual void	Init ()
	initialization code
virtual void	CleanUp ()
	clean up code
virtual string	getCaption ()
	getter method for Caption
virtual void	setCaption (string newValue)
	setter method for Caption
QFont *	getFont ()
	getter method for Font
void	print ()
	prints itself to the cout
	QCaptionButton (QWidget *aOwner)
	Constructor.
virtual	~QCaptionButton ()
	Destructor.
Protected Attributes
string	Caption
	caption of the button
QFont *	Font
	used to draw caption
QFont *	Font
	used to draw caption
Private Attributes
int	CaptionPositionX
	x position of the caption (centered)

Detailed Description

Button with Caption.

Definition at line 17 of file QCaptionButton.h.

Constructor & Destructor Documentation

QCaptionButton::QCaptionButton ( QWidget * aOwner )

Constructor.

Definition at line 131 of file QCaptionButton.cpp.

QCaptionButton::~QCaptionButton ( ) [virtual]

Destructor.

Definition at line 141 of file QCaptionButton.cpp.

QCaptionButton::QCaptionButton ( QWidget * aOwner )

Constructor.

virtual QCaptionButton::~QCaptionButton ( ) [virtual]

Destructor.

Member Function Documentation

virtual bool QCaptionButton::canDrag ( QEvent * e ) [virtual]

have to return true if widget should be dragged with mouse. This method is overwritten in sub classes. If returns true, widget will be dragged

Reimplemented from QButton.

bool QCaptionButton::canDrag ( QEvent * e ) [virtual]

have to return true if widget should be dragged with mouse. This method is overwritten in sub classes. If returns true, widget will be dragged

Reimplemented from QButton.
Definition at line 57 of file QCaptionButton.cpp.

virtual bool QCaptionButton::canFocus ( QEvent * e ) [virtual]

defines whether control can have keyboard focus. Should return true if Widget wants to get keyboard focus

Reimplemented from QButton.

bool QCaptionButton::canFocus ( QEvent * e ) [virtual]

defines whether control can have keyboard focus. Should return true if Widget wants to get keyboard focus

Reimplemented from QButton.
Definition at line 80 of file QCaptionButton.cpp.

virtual void QCaptionButton::childrenChanged ( ) [virtual]

called if a child is added/removed

Reimplemented from QButton.

void QCaptionButton::childrenChanged ( ) [virtual]

called if a child is added/removed

Reimplemented from QButton.
Definition at line 75 of file QCaptionButton.cpp.

virtual void QCaptionButton::CleanUp ( ) [virtual]

clean up code

Reimplemented from QButton.

void QCaptionButton::CleanUp ( ) [virtual]

clean up code

Reimplemented from QButton.
Definition at line 95 of file QCaptionButton.cpp.
References QButton::CleanUp().

virtual void QCaptionButton::draw ( QEvent * e ) [virtual]

draws itself with OpenGL. Here is the OpenGL drawing code

Reimplemented from QButton.

void QCaptionButton::draw ( QEvent * e ) [virtual]

draws itself with OpenGL. Here is the OpenGL drawing code

Reimplemented from QButton.
Definition at line 23 of file QCaptionButton.cpp.
References Caption, CaptionPositionX, QFont::drawAtPos(), QLookAndFeel::drawBevel(), QLookAndFeel::drawRect(), Font, QLookAndFeel::getBackGroundColor(), QWidget::getFocused(), QLookAndFeel::getHighlightColor(), QFont::getLengthForWidth(), QWidget::Height, QWidget::LookAndFeel, QColor::setAsCurrent(), QButton::State, and QWidget::Width.

virtual string QCaptionButton::getCaption ( ) [virtual]

getter method for Caption

string QCaptionButton::getCaption ( ) [virtual]

getter method for Caption

Definition at line 101 of file QCaptionButton.cpp.
References Caption.
Referenced by myMethod2().

QFont* QCaptionButton::getFont ( )

getter method for Font

QFont * QCaptionButton::getFont ( )

getter method for Font

Definition at line 114 of file QCaptionButton.cpp.
References Font.

virtual void QCaptionButton::Init ( ) [virtual]

initialization code

Reimplemented from QButton.

void QCaptionButton::Init ( ) [virtual]

initialization code

Reimplemented from QButton.
Definition at line 86 of file QCaptionButton.cpp.
References QFont::copyFrom(), Font, QLookAndFeel::getFont(), QWidget::Height, QButton::Init(), QWidget::LookAndFeel, and setCaption().

virtual void QCaptionButton::layout ( ) [virtual]

layout the children widgets. This method is called every time the size is changed. Have to be overwritten for respond on size changes

Reimplemented from QButton.

void QCaptionButton::layout ( ) [virtual]

layout the children widgets. This method is called every time the size is changed. Have to be overwritten for respond on size changes

Reimplemented from QButton.
Definition at line 50 of file QCaptionButton.cpp.
References QButton::layout(), and updateCaptionPosition().

void QCaptionButton::print ( )

prints itself to the cout

Reimplemented from QButton.

void QCaptionButton::print ( )

prints itself to the cout

Reimplemented from QButton.
Definition at line 122 of file QCaptionButton.cpp.

virtual bool QCaptionButton::processEvent ( QEvent * e ) [virtual]

processing mouse/keyboard events which are in widgets region. Mouse coordinates are relative to Owner

Reimplemented from QButton.

bool QCaptionButton::processEvent ( QEvent * e ) [virtual]

processing mouse/keyboard events which are in widgets region. Mouse coordinates are relative to Owner

Reimplemented from QButton.
Definition at line 63 of file QCaptionButton.cpp.
References QButton::processEvent().

virtual bool QCaptionButton::processMouseOwner ( QEvent * e ) [virtual]

processing mouse events which are in Owner widget region. Mouse coordinates are relative to Owner

Reimplemented from QButton.

bool QCaptionButton::processMouseOwner ( QEvent * e ) [virtual]

processing mouse events which are in Owner widget region. Mouse coordinates are relative to Owner

Reimplemented from QButton.
Definition at line 69 of file QCaptionButton.cpp.
References QButton::processMouseOwner().

virtual void QCaptionButton::setCaption ( string newValue ) [virtual]

setter method for Caption

void QCaptionButton::setCaption ( string newValue ) [virtual]

setter method for Caption

Definition at line 107 of file QCaptionButton.cpp.
References Caption, and updateCaptionPosition().
Referenced by Init(), main(), and MyWindow::MyWindow().

virtual void QCaptionButton::updateCaptionPosition ( ) [virtual]

overwrite this to recalculate caption position

void QCaptionButton::updateCaptionPosition ( ) [virtual]

overwrite this to recalculate caption position

Definition at line 14 of file QCaptionButton.cpp.
References Caption, CaptionPositionX, Font, QFont::getTextWidth(), and QWidget::Width.
Referenced by layout(), and setCaption().

Field Documentation

string QCaptionButton::Caption [protected]

caption of the button

Definition at line 26 of file QCaptionButton.h.
Referenced by draw(), getCaption(), setCaption(), and updateCaptionPosition().

int QCaptionButton::CaptionPositionX [private]

x position of the caption (centered)

Definition at line 22 of file QCaptionButton.h.
Referenced by draw(), and updateCaptionPosition().

QFont* QCaptionButton::Font [protected]

used to draw caption

Definition at line 29 of file QCaptionButton.h.

QFont* QCaptionButton::Font [protected]

used to draw caption

Definition at line 28 of file QCaptionButton.h.
Referenced by draw(), getFont(), Init(), and updateCaptionPosition().

The documentation for this class was generated from the following files:

/cygdrive/d/Eigene Dateien/!DProcs/code_gen/QCaptionButton.h
/cygdrive/d/Eigene Dateien/!DProcs/code_gen/src/QCaptionButton.h
/cygdrive/d/Eigene Dateien/!DProcs/code_gen/QCaptionButton.cpp
/cygdrive/d/Eigene Dateien/!DProcs/code_gen/src/QCaptionButton.cpp
